How I run and deploy docker services in my homelab with Komodo and a custom CLI

From maintaining docker-compose files…↑

A likely relatable story for some: I’ve long since maintained docker-compose files in a repository and simply cloned it on the correct VM(s) to deploy services. That works fine.

Naturally, as services grew over the years, I added dockge to manage some of it.

But it was still hard to keep track, so I’ve added a small yaml file that just lists all services and some metadata (say, a description).

…to inventing dev tooling…↑

I’ve then added a small CLI application (named Heidrun) that could generate templates for these services from this data, for instance a run.sh file that made sure any external mounts were present.

But there were still several manual steps involved: A HTTP service would need a DNS entry, and the service would need TLS, which we can provide via traefik. So I added more templates that generate a setup.md that simply told me what to do. It also generated the de-facto documentation for a lot of it. It’s a one-time setup step, so why automate that… right?

But of course, copy-pasting this got old fast, so i added CLI commands to automatically merge these changes into e.g. the traefik config eventually.

By this time, I’ve added a lot more properties:

gitea:
    auth:
      configured: true
      typ: oicd
    data:
      conf:
        chown: true
        dirs:
        - /opt/gitea/data
      mount-nfs: false
    description: Self-hosted git server
    developer:
      github-url: https://github.com/go-gitea/gitea
    docker:
      env-file: null
      file: docker-compose.yaml
    hooks: null
    is-abandoned: false
    nodes:
    - hostname: gaia.lan
      ip: # ... shortened for your convinience
    owner:
      gid: #...
    service: gitea
    service-type: docker-compose
    sql: null
    traefik:
      host: git. # ... this one is funny, since it actually also needs a TCP router which I have, but never modelled in this config
      ports:
      - 443
    use-ngrok: false

…to almost re-inventing Kubernetes↑

Naturally, I also needed to pull the changes on the respective servers (by this point all the run.sh script had sentinels that avoided me accidentally running it on the wrong machine and breaking the network routing). SSH/Git keys helped, but I’ve also added a few shell scripts that would pull from git, restart the compose stacks and so on.

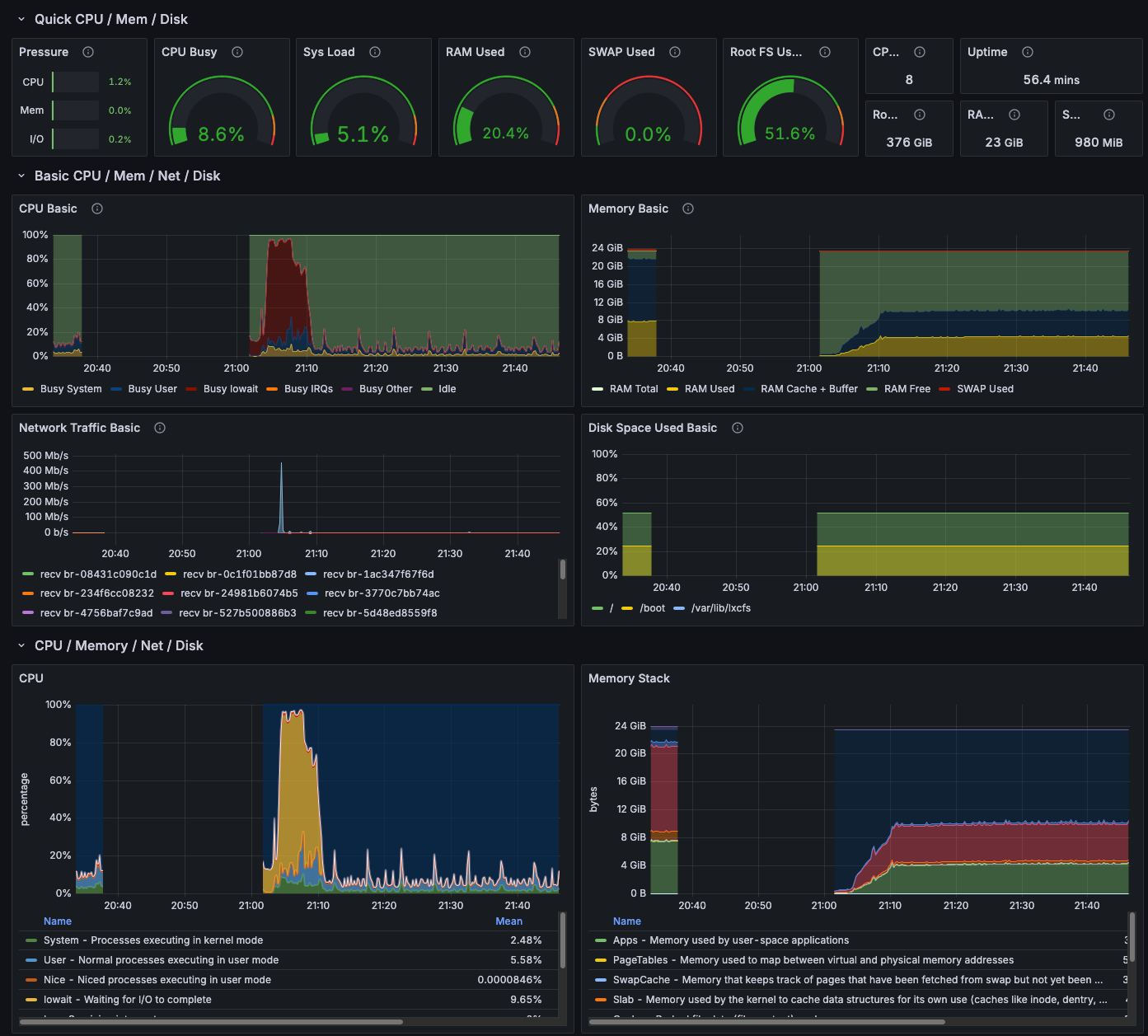

Other things got annoying: Cold starts of the bigger VMs that (by virtue of copy-pasting the node name) ran a lot of services could take a long time. It would be nice to distribute the load better. Biggest bottleneck was I/O.

Since I was halfway to a deployment system with my generated script jungle, I came up with this idea of adding an agent to the servers and add worker nodes to it…

This is where I finally stopped myself.

On shaving yaks↑

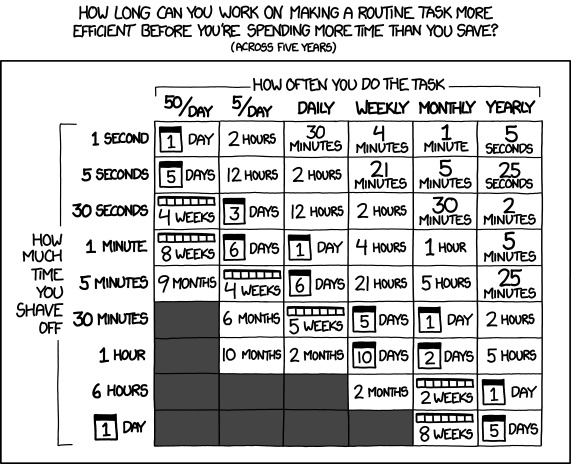

A big part of running a homelab for me is to learn and experiment - it’s OK to yak shave a bit.

It’s fun (and educational) to do things from scratch sometimes. May I point you to my distributed systems series while we’re at it?

I intentionally don’t run Kubernetes, partially because I don’t particularly enjoy working with it, partially because I already use it at work, and partially because I don’t think it would add a lot for me (or, frankly, most businesses). The same comment largely applies to terraform and ansible.

It’s also an enormous amount of setup that has little overlap with my current template code-gen monstrosity, which, despite its insanity, works really well and has a few advantages I’ll get to shortly (you could make a point for it having some overlap with helm, but I digress).

I also enjoy writing code. I don’t get to do that as often as I like, and I dislike coding challenges for the sake of it, yet don’t have enough free time for a fully-fledged OSS project (although I do maintain a few niche ones). And by not doing it at work, I don’t have to view code as a liability as much.

You know what, I like my CLI↑

So, I decided that I wanted to actually re-use heidrun. It’s a surprisingly convinient tool: While it’s not written in Rust, doesn’t use GraphQL, and doesn’t even cost $20,000/mo to run on AWS, it is a very convinient wrapper arround small, but dense dataset. Think of it as a local CRUD app with validation and automation built in, where the persistence layer is various yaml and toml files that describe infrastructure.

For instance, you can query the services.yaml:

❯ uv run heidrun list abandoned
bar-assistant
jelu

Now, granted, you can do this with yq:

❯ cat services.yaml |  yq '.services | to_entries | map(select(.value.is-abandoned == true)) | .[].key'
bar-assistant
jelu

But as much as I enjoy the jq/yq syntax, it’s not something I find very convinient. Maybe it even saves me some time!

Also, can yq find me a free port on a host that has multiple services?

uv run heidrun list free-port --host gaia.lan
9002

…probably, if you group all hostnames and ports and add 1.

But my point here is: It does things for me I find useful and I’d like to keep using them them.

It’s also decent abstraction, since changing code gen is all that’s required to migrate IaC logic (say, from SSH deployments to a convinient, open source tool…).

What I don’t want to keep (or write) is all the other stuff that comes along with it - the actual deployment, the agents, the monitoring, the background tasks, the updater, the secrets management etc.

And I found just the tool to do all that, all while being fully configurable via git controlled files (and hence, a prime candidate for heidrun).

Components↑

Komodo can be configured via toml files or the UI. It does have a heavy emphasis on declarative infrastructure, so what I’ll be doing.

The example I’m using here is homepage.dev , which is my home lab’s landing page.

Stack: What & Where↑

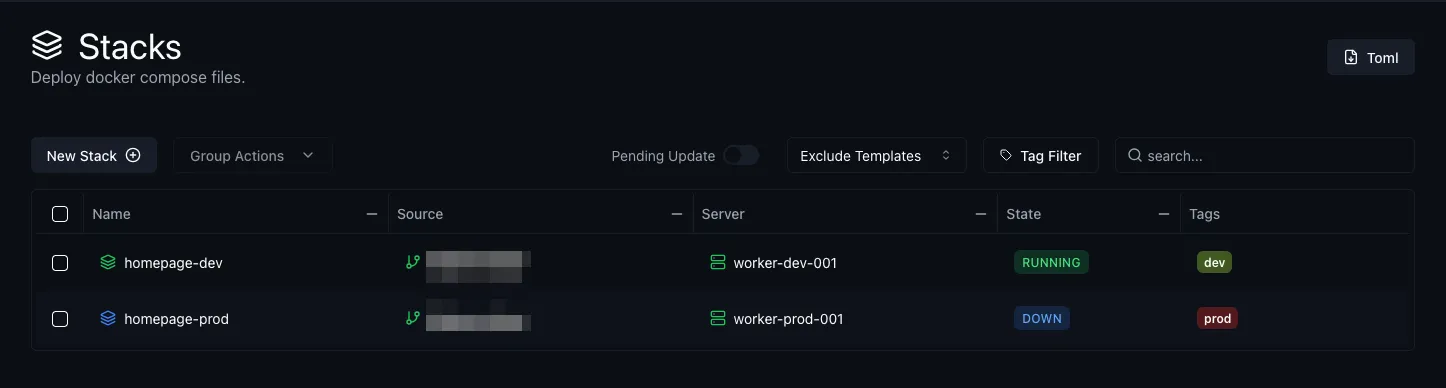

At the heart of it all, we have a stack per service that controls how to run the actual thing we want to host and where.

[[stack]]
name = "homepage-dev"
description = "A modern, fully static, fast, secure fully proxied, highly customizable application dashboard"
tags = ["dev"]
[stack.config]
server = "worker-dev-001"
auto_update = true
linked_repo = "my-config-repo"
run_directory = "docker/homepage"
file_paths = ["docker-compose.yaml"]
pre_deploy.command = """
  ./pre-deploy.sh
"""
environment = """
HOMEPAGE_VAR_GITEA_TOKEN = [[HOMEPAGE_VAR_GITEA_TOKEN]]

I’ve generated a pre-deploy.sh script that can do setup (like copying config files). It’s driven by an existing setting (called hooks) in my services.yaml:

homepage:
  # ...
  docker:
    env-file: .env
    file: docker-compose.yaml
  hooks:
    pre:
    - cp $DIR/config/* /srv/homepage/config

Somewhat driving home the point that a small CLI can be a good abstraction.

The rest of the settings are pretty self-explanatory: Tags and descriptions are metadata; we tell it to run on a specific server and to pull from a specific git repo, both components we’ll define in a second.

sync-service: What stacks to create↑

Since we can’t just copy the toml into the UI (like you can with json in datadog, for instance), we also need to create a sync.

Komodo is able to create, update, delete, and deploy resources declared in TOML files by diffing them against the existing resources, and apply updates based on the diffs.

This sync-service refers to the stacks from earlier:

[[resource_sync]]
name = "services-dev"
description = "Main deployment sync for services."
tags = ["dev"]
[resource_sync.config]
linked_repo = "my-config-repo"
resource_path = [
"docker/homepage/komodo_deployment.dev.toml"
]

And will effectively create the actual stacks. heidrun’s templating just fills in the resource_path array.

service-sync: The starting point↑

Since we need to tell Komodo to sync our resources from git, but we also create all these resources based on files in that very git repo, we need a starting point for the whole deployment chain.

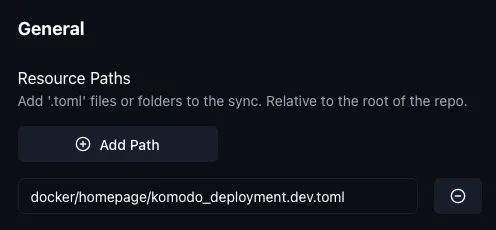

We could skip this step and just maintain services-dev via ClickOps, but I don’t like that:

So, this non-IAC component simply makes sure the actual sync-service from above is up to date, e.g. if we added a new service to it, we just need to refresh this for it to propagate:

[[resource_sync]]
name = "service-sync-dev"
description = "Creates the actual service-syncs"
tags = ["dev"]
[resource_sync.config]
linked_repo = "my-config-repo"
resource_path = [
  "docker/komodo_services.dev.toml"
]

Which isn’t too bad.

Repositories↑

All this is driven by git repositories. I re-use the same git repository where everything already lives.

These can also be maintained as a config:

[[repo]]
name = "my-config-repo"
[repo.config]
server = "Local"
git_provider = "git.example.org"
git_account = "christian"
repo = "christian/my-config-repo"

Workers↑

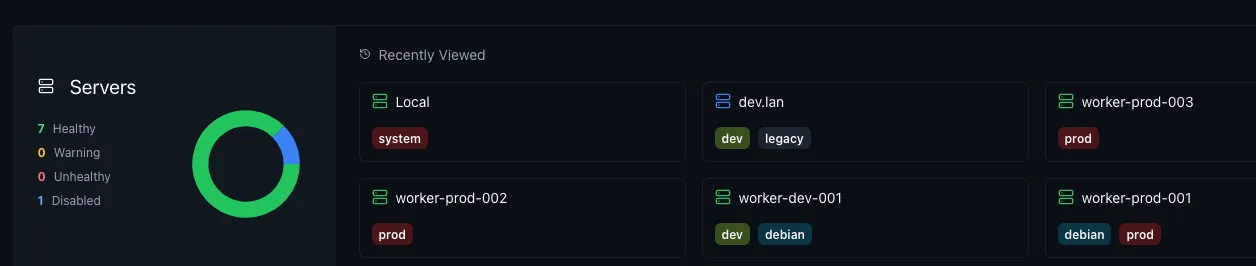

All this needs to actually run somewhere. Note how the stack defined a worker as e.g. worker-dev-001? Yep, also a toml file:

[[server]]
name = "worker-dev-001"
tags = ["dev", "debian"]
[server.config]
address = "https://192.168.1.197:8120"
enabled = true

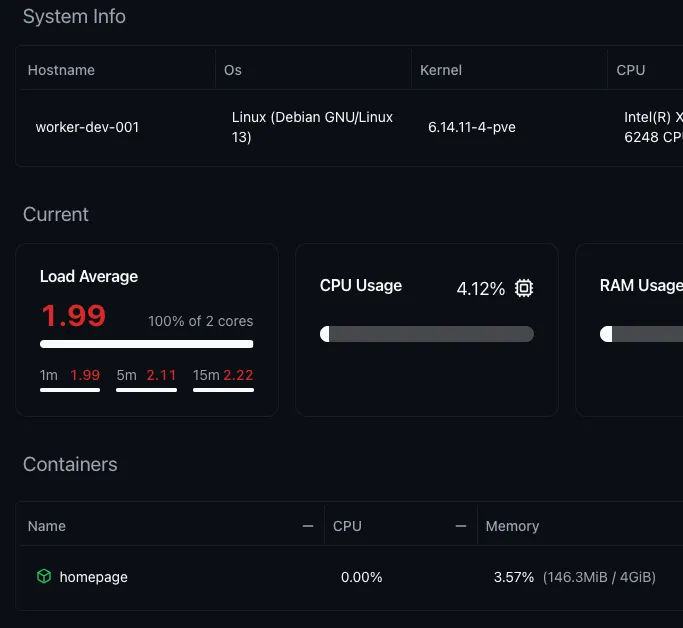

Even comes with neat monitoring:

This works for any worker running the periphery agent. I run my monitoring largely with Grafana, but it’s still nice to have (even though I do think the LXC messes with the load average numbers).

Proxmox↑

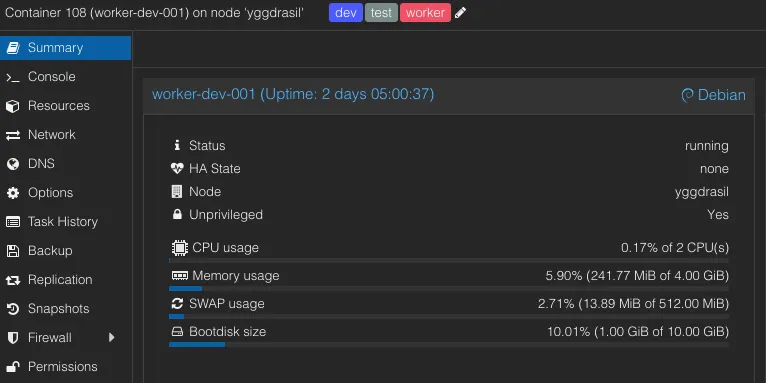

This is where we break out of pure komodo, since we still need to create these workers: The actual worker are unpriviledged Proxmox LXC (containers).

Said container is based on a template, which makes it reasonably easy to scale up and down nodes (albeit not as easy as with K8s). Each container simply runs debian + docker, as well as the periphery agent.

We can also tie them to Proxmox resource pools. Naturally, you could maintain these LXCs via ansible, terraform, or others. It’s turtles all the way down.

Containers are more lightweight than VMs for this and make networking easier and visible in the GUI (namely static IP assignments and VLANs). You could also run VMs.

A graph↑

Aimed with this knowledge, we can try to visualize this (if you squint hard enough, this is K8s shaped). Since every toml here can have an associated sync, I simplified it a little bit.

This looks a bit convoluted, but I like diagrams and I promise it’s pretty simple once you see it in action.

See it in action↑

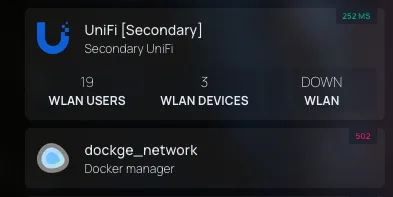

Real world example: After rolling out this system, I deprecated dockge and wanted to update homepage.dev to reflect that.

 uv run heidrun config abandon --name dockge --write-to-system-conf

uv run heidrun --write --force --service dockge generate all

❯ uv run heidrun list abandoned
dockge

❯ uv run heidrun config delete --name dockge
WARNING  | heidrun:delete:349 - ⚠️ Deleting service 'dockge'. Type 'DELETE' to confirm:
DELETE
INFO     | heidrun:delete:356 - Writing system config for 'dockge'
DEBUG    | heidrun:delete:362 - Writing new config to 'docker'
INFO     | heidrun:delete:368 - Service 'dockge' deleted.

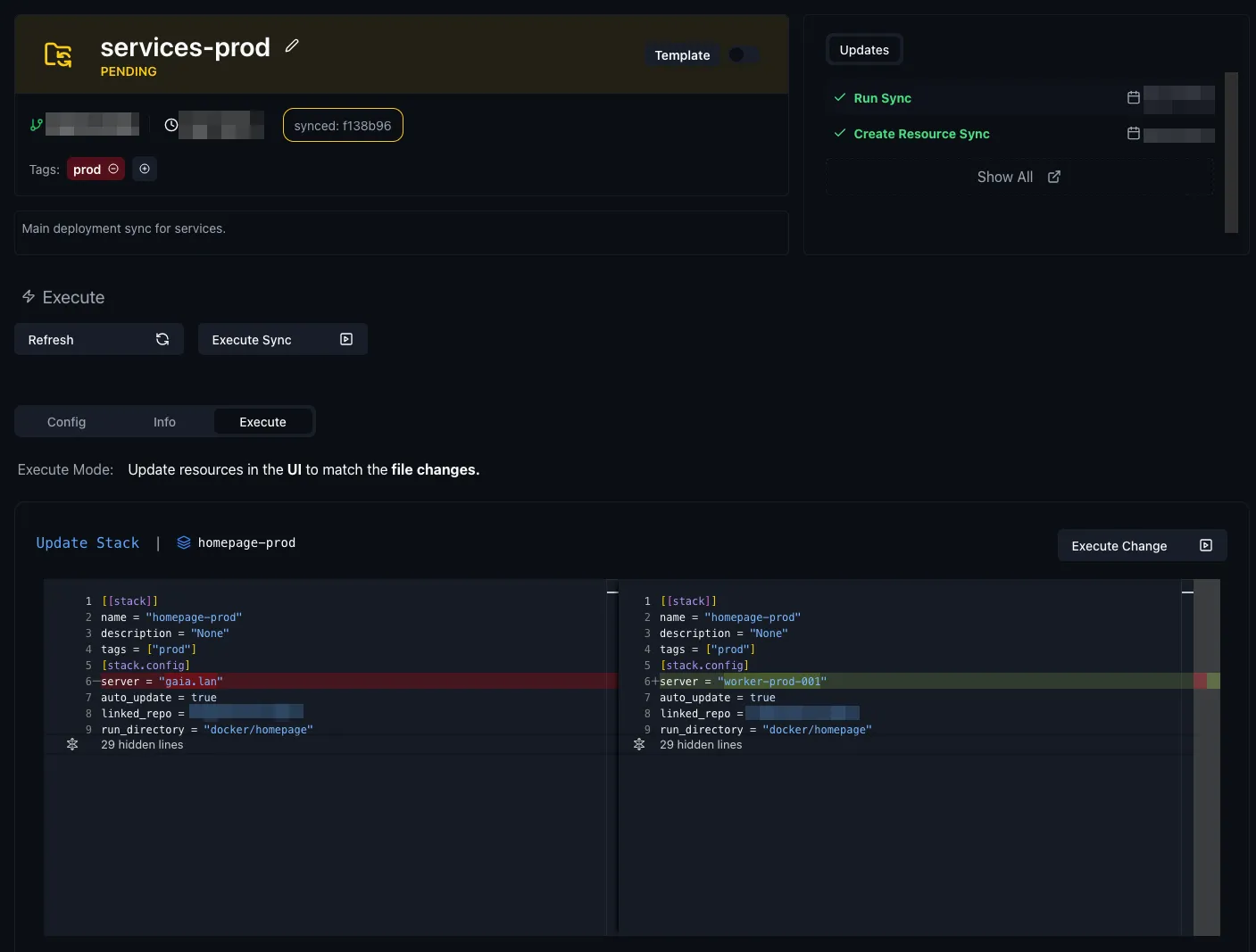

--- a/docker/homepage/komodo_deployment.prod.toml
+++ b/docker/homepage/komodo_deployment.prod.toml
@@ -4,7 +4,7 @@ name = "homepage-prod"
 description = "None"
 tags = ["prod"]
 [stack.config]
-server = "gaia.lan"
+server = "worker-prod-001"
 auto_update = true
 linked_repo = "my-config-repo"
 run_directory = "docker/homepage"
@@ -36,4 +36,4 @@
HOMEPAGE_VAR_OCTOPRINT_TOKEN = [[HOMEPAGE_VAR_OCTOPRINT_TOKEN]]
-"""
+"""

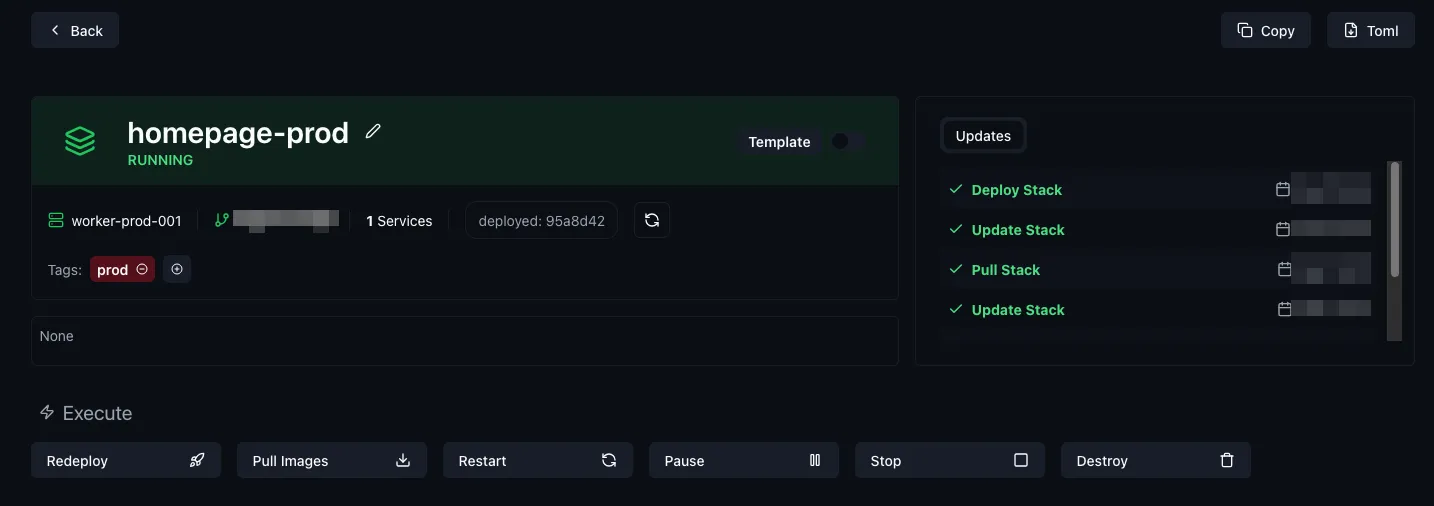

Things I glossed over↑

Amongst other things, heidrun can also:

• Parse .gitignore’d .env files and handle secrets
• Validate itself and all configs
• Generate a bunch more files I haven’t described here
• Support deployment on multiple nodes, something komodo can’t (fun fact, I use heidrun to manage the komodo-periphery-agent stacks 🐢)
• Round robin my services on worker nodes

All of which pre-dates Komodo, so this all still applies.

I’m also ignoring the fact that I run my own Docker registry in-house.

Lastly, I also generally don’t deploy databases with my docker-compose stacks and just point services to an external (usually postgres) database, which makes data and service migrations between machines easier. If you don’t do this, you have to think a lot harder about state once services are running.

What it is↑

• It’s a way to manage a diverse set of services
• It’s a CI/CD pipeline and server (ish, it currently doesn’t build anything, even though it can)
• It’s a monitoring and operations tool that lets me ClickOps things like service restarts
• It’s somewhat of a clustered system, but only by virtue by me manually distributing services across nodes and seeing who runs what

What it isn’t↑

Kubernetes. It’s obviously not that. It’s also not Docker Swarm. It doesn’t actually handle the underlying runner infrastructure, pod management, distributed deployments across pods, heck, it doesn’t even automatically handle single worker node assignments, since you have to hard-code that in the stack’s’ toml.

In fact, it has nothing to do with resources, other than being aware of worker nodes existing. It just runs docker-compose. And that’s a feature, not a bug.

At the same time, it’s more: It’s out-of-the-box monitoring and management (as well as the dev experience!) would require about 227 different tools for K8s. Just testing a simple Helm change can be absolute tooling nightmare (at least for me, ymmv).
